Furnace Filter Put In Backwards? Which Way the Arrow Goes and What to Do
| Written by | Ask About HVAC Editorial Team | Expert review | Pending |
|---|---|---|---|
| Published | Last updated | ||
| Sources | 4 cited | Reading time | 3 min |
Quick answer
The arrow on a furnace filter shows the direction air moves through it, so it should point toward the furnace or air handler blower and away from the return duct or grille. Filtrete tells you to point the airflow arrow toward the AC or heat blower, and MANN+HUMMEL says it should always face toward the furnace and away from the return duct (Filtrete; MANN+HUMMEL). If yours is in backwards, turn the system off at the thermostat, slide the filter out, and put it back with the arrow toward the blower.
Which way the arrow points, by location
| Where your filter is | Arrow should point |
|---|---|
| Slot on the side of an upflow furnace (return enters at the bottom or side) | Into the furnace cabinet, toward the blower |
| Slot near the top of a downflow furnace | Down, into the furnace |
| Horizontal furnace in an attic or crawlspace | Along the duct, toward the furnace |
| Wall return grille | Into the wall, away from the room |
| Ceiling return grille | Up, into the duct, away from the room |

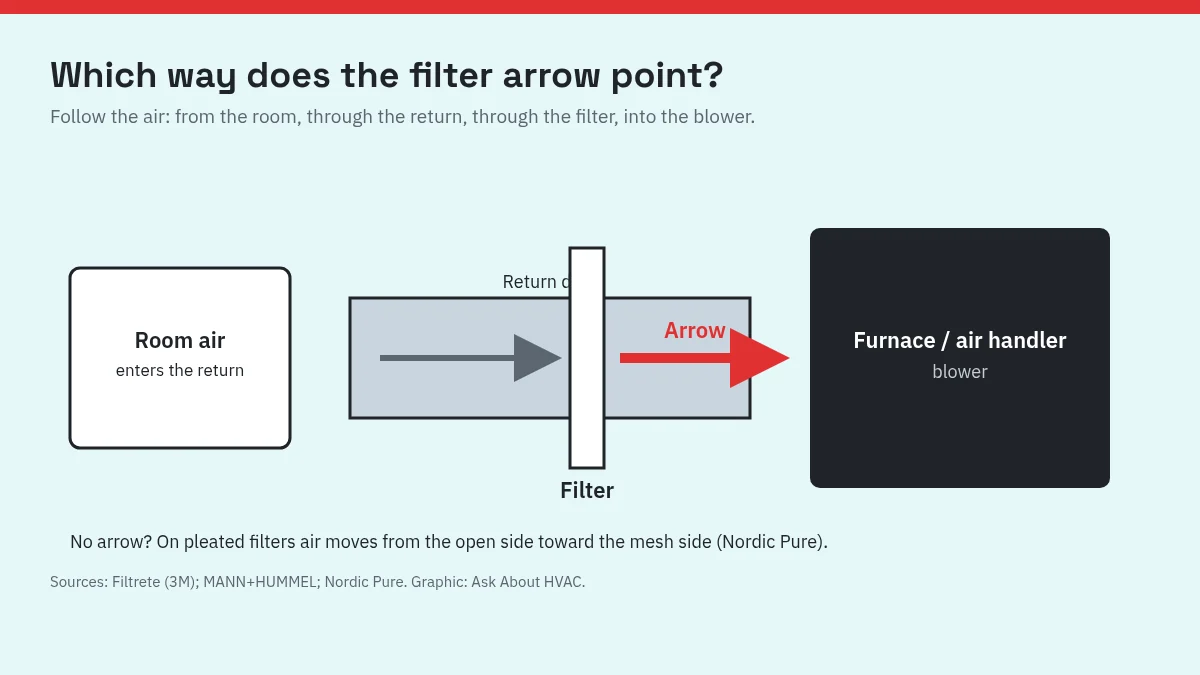

The rule behind every row is the same one Nordic Pure explains: air enters through the return, passes through the filter and then moves into the air handler (Nordic Pure). Follow the air from the room toward the blower, and the arrow points that way.
How to fix a backwards filter
- Turn the system off at the thermostat. Nordic Pure says to turn the HVAC system off before removing a filter.
- Slide the filter out and check the arrow on the frame.
- Look at the media. If it is sagging, torn, wet or heavily loaded with dust, replace it instead of flipping it. MANN+HUMMEL says a filter that becomes damp or wet should be changed right away.
- Reinstall with the arrow toward the blower.
- Write the date on the frame, as Nordic Pure suggests, so you know when it is due.
- Turn the system back on.
What if there is no arrow?
Some filters, especially custom sizes, have an arrow that is hard to see. Nordic Pure's guidance (Nordic Pure):
- On pleated filters, air generally moves from the open side toward the reinforced or mesh side. So the mesh side faces the blower.
- On half-inch ring panel filters, air enters through the fuzzy, high-loft side and exits through the thinner, smooth side.
- On carbon filters, the carbon layer is positioned on the outflow side.
Before you pull the old filter, note which way its arrow pointed; Nordic Pure recommends installing the new one the same way. If you are unsure the old one was right, use the room-to-blower rule above.
Does a backwards filter hurt the furnace?
Every manufacturer we checked gives one direction and tells you to follow it. What they publish about the design explains why. Nordic Pure describes its disposable filters as media plus internal support (wire, metal fabric or cardboard), with air moving from the open side toward the reinforced side (Nordic Pure). Installed backwards, the support is on the wrong side of the media, and on a carbon filter, the carbon layer ends up upstream instead of on the outflow side where the maker puts it.
We did not find a manufacturer or government test that measures how much a reversed filter changes airflow or filtration, so we will not put a number on it. The practical answer is simple: flip it, and replace it if it looks damaged.
While you have it out: is it time for a new one?
A filter only works if it is replaced on schedule. EPA says all filters need periodic replacement and to follow the manufacturer's recommendations (EPA). Typical manufacturer intervals:
| Filter | Replace about every | Source |
|---|---|---|
| 1-inch pleated | 3 months (at least) | Filtrete |
| 1-inch and 2-inch | 30 to 90 days | Nordic Pure |
| Disposable pleated (Prime Series) | 90 days, depending on environment | MANN+HUMMEL |
| Disposable panel (Select Series) | 30 days | MANN+HUMMEL |
| 4-inch and thicker | At least once a year | Filtrete |
| 3-inch to 5-inch | 3 to 6 months | Nordic Pure |
Pets, smoke, heavy dust and long run times shorten those intervals. Our guide on how to tell if your furnace filter needs changing covers the signs and a quick light test.
Use one filter per slot. Nordic Pure advises against stacking more than one filter in the same place because of the airflow restriction (Nordic Pure).
FAQ
Which way does the arrow go on a furnace filter?
Toward the furnace or air handler blower, and away from the return duct or grille the air comes from. Filtrete, MANN+HUMMEL and Nordic Pure all give the same direction.
Is it bad if my furnace filter was in backwards?
Manufacturers design one-direction filters to be used with the arrow toward the blower, so flip it as soon as you notice. If it sat backwards for a long time, look it over and replace it if the media is sagging, torn or very dirty.
What if there is no arrow on my filter?
Nordic Pure says air generally moves from the open side toward the reinforced or mesh side. On its half-inch ring panels, air enters the fuzzy side and exits the smooth side.
Which way does a filter go in a ceiling return?
The arrow still points toward the blower. In a ceiling return grille, that usually means pointing up into the duct, away from the room.
Sources
| # | Source | Site |
|---|---|---|
| 1 | How to Install an Air Filter, Filtrete (3M) | filtrete.com |
| 2 | FAQs and Industry Terms, MANN+HUMMEL Air Filtration | airfiltration.mann-hummel.com |
| 3 | Help Center FAQ (installation, airflow side, carbon layer), Nordic Pure | nordicpure.com |
| 4 | What is a MERV rating?, U.S. EPA | epa.gov |
Every number above was checked against these sources. Found an error? See corrections or email contact@askabouthvac.com.
Expert review status: pending
The editorial fact-check of this guide is complete. It is queued for review by J.T. Bratcher, a Texas-licensed air conditioning contractor. His name and the review date will appear here and at the top of the page only after he approves it.
